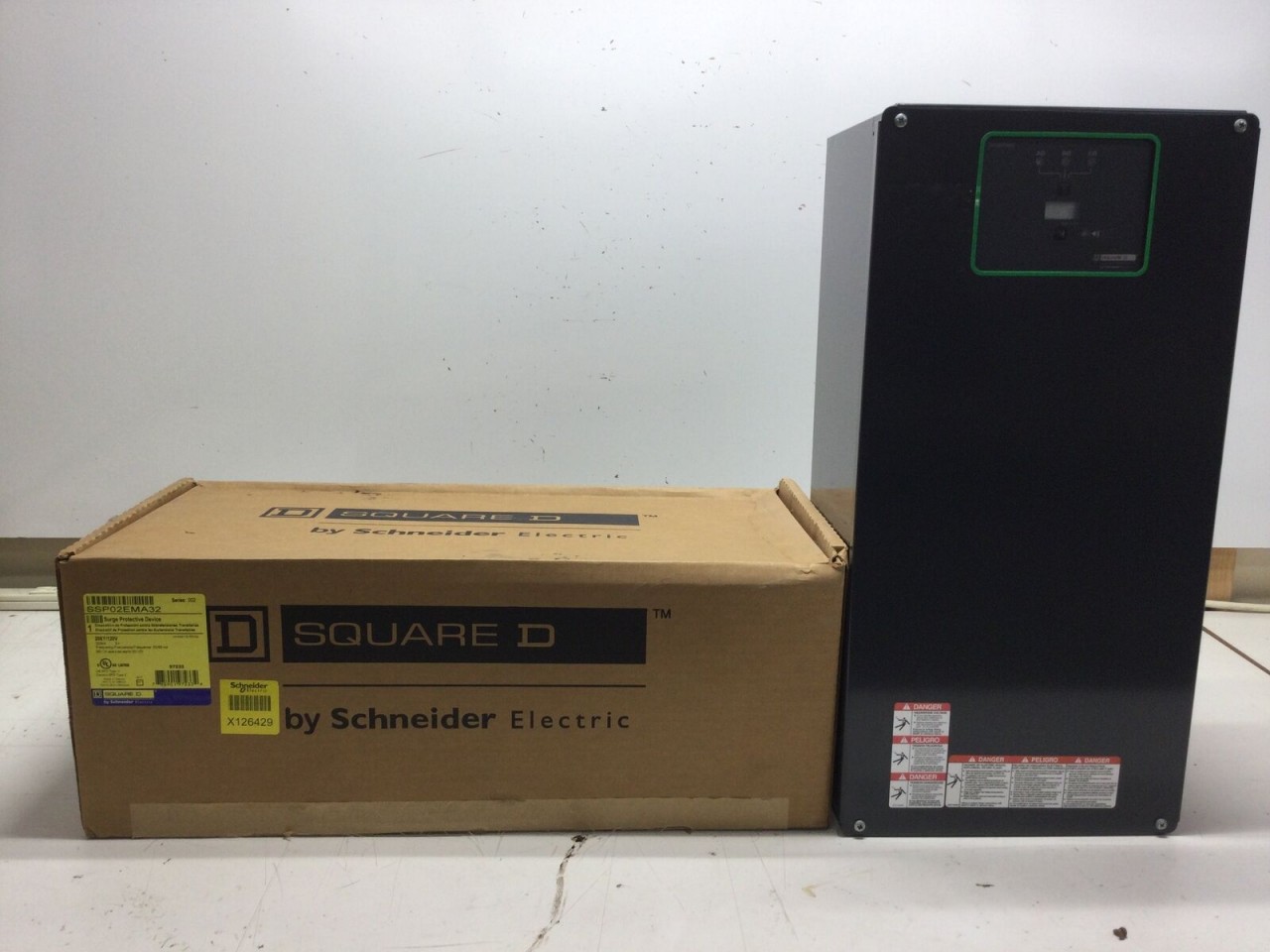

Surgelogic™ Type EMA Series surge protective devices deliver specification grade performance for service entrance or critical branch panel applications. These multi-phase surge suppression systems provide transient suppression, noise filtration in a durable modular package. They provide better performance with a diagnostic interface with push to test switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. It has 10 year product warranty.
Voltage Rating | 208Y/120 V AC |
---|---|
MCOV | 150 V |
SCCR | 200 kA |
Surge Current | 320 kA |
Nominal Discharge Current | 20 kA |
Number of Phases | 3 phase |
Wiring Configuration | 4-wire |
Connection | Lugs AWG 10...AWG 2 copper 35.4 lbf.in (4 N.m) |
Local Signalling | Status LED green per phase normal operation Status LED red per phase fault |
Provided Equipment | Alarm enable/disable switch Surge counter Dry contacts |
Cable length | 19.02 in (483 mm) |
Device Mounting | Surface |
Height | 21.6 in (549 mm) |
Width | 9.9 in (251 mm) |
Depth | 7.9 in (200 mm) |
