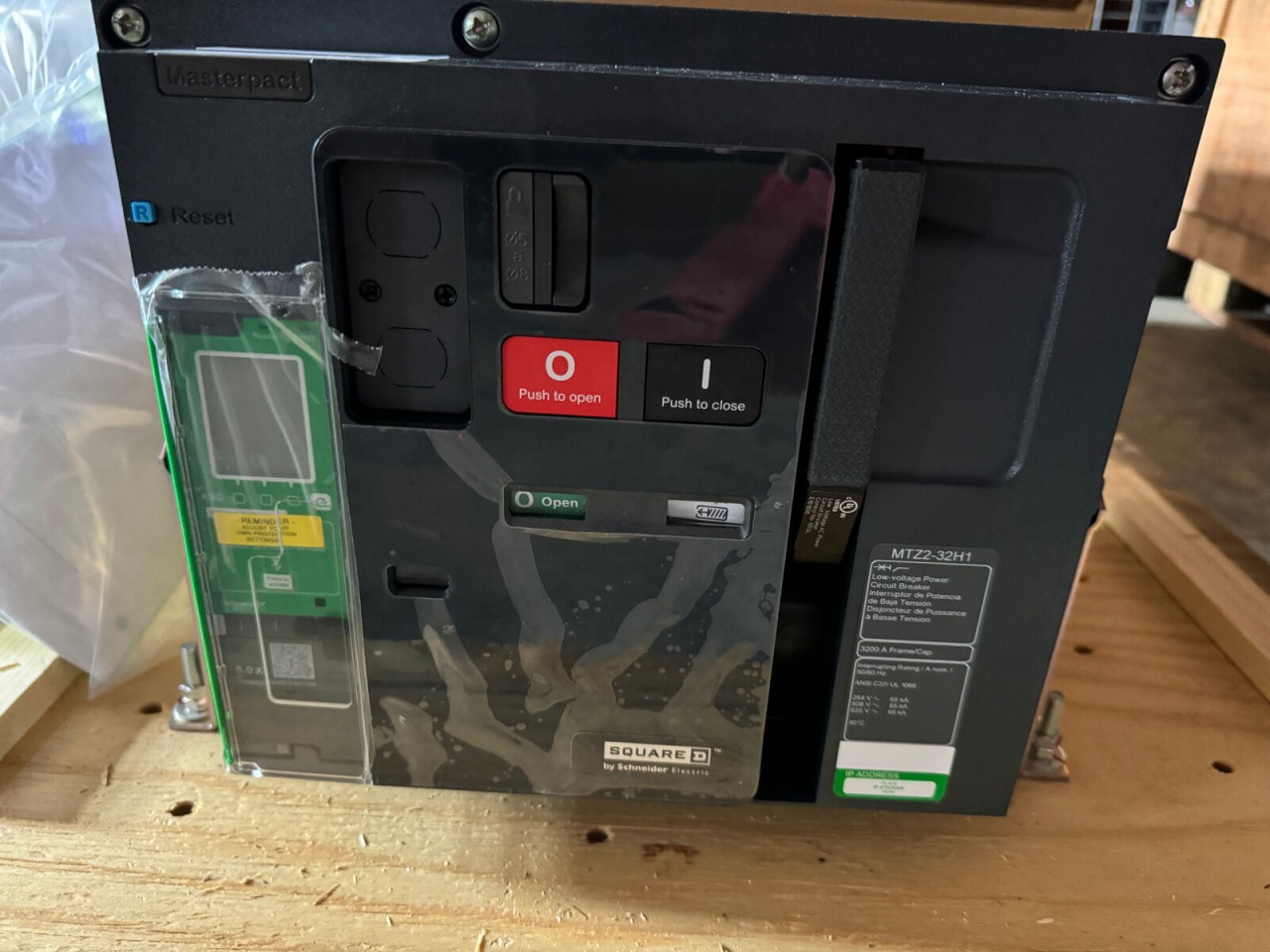

Square Masterpact MTZ2-32H1 Low-Voltage Power Air Circuit Breaker 3200A 3P 635V
Product Description
| Range | MasterPact |
|---|---|
| Product name | MasterPact MTZ2 |
| product or component type | Circuit breaker |
| Device short name | MTZ2 32 H1 |
| Device application | Distribution |
| poles description | 3P |
| Protected poles description | 3D |
| [In] rated current | 3200 A at 40 °C |
| Performance type | H1 66 kA 415 V AC |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Selectivity category | Category B |
| Control type | Manually operated ON/OFF push-button |
| mounting mode | Drawout |
| Trip unit name | MicroLogic 5.0 X |
| Trip unit technology | Electronic |
| Trip unit protection functions | LSI |
